Table of Contents:
Exterior: G1 Mesh Intake Filters
Interior: MERV4 Filters: 24"x24"x4" pleated paper
Exterior G1 filters
(Back to top)

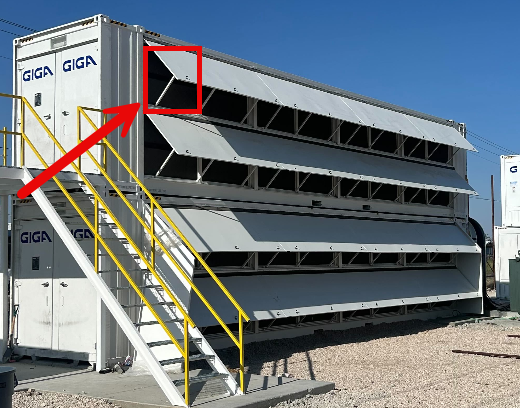

The (16) exterior G1 mesh filters are designed to filter out larger debris. They are located on the intake side under the intake hoods.
Depending on the version of the container you have, there are multiple ways the G1 filters are mounted. Some have spring loaded tabs, some have self tapping screws, and some are screwless. Here is an up close look at the screwless kind. For any questions on how to remove, please Submit a Ticket and our Customer Support Team will be happy to assist.

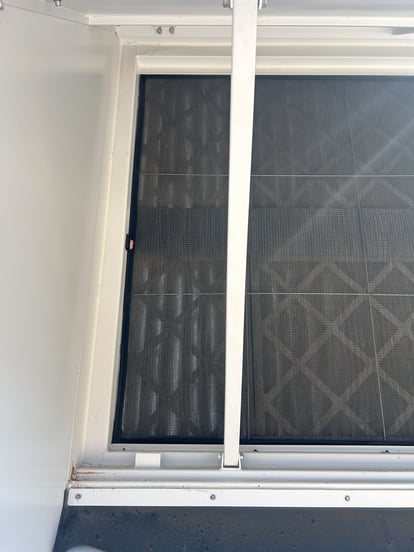

The filters on the screwless version sit inside 2 channels on top and bottom of the intake area
Interior 24"x24"x4" pleated paper filters
(Back to top)

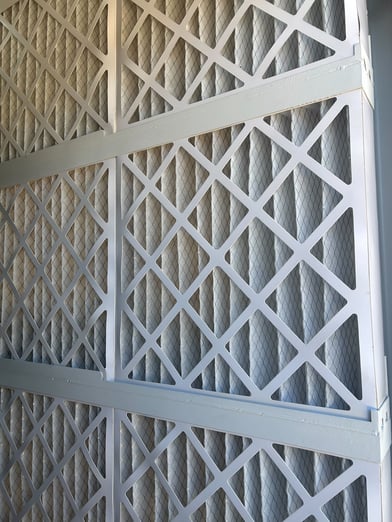

The interior air filters are located in the cold aisle on the container wall. The MERV4 filters are designed to capture smaller debris while maintaining sufficient air flow to support the miners.
The number of filters vary based on the size of the container.
Giga Air Box (L) - 40': 76 filters
Giga Air Box (XL) - 45': 80 filters

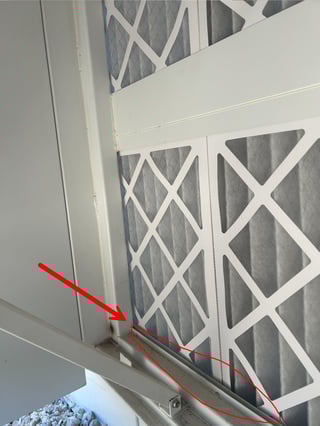

To replace the filters, there is an opening in the filter tray that allows you to remove the filter. Then you would need to slide the filters to this opening to remove.
